SAFFE–Heavy Duty Towers

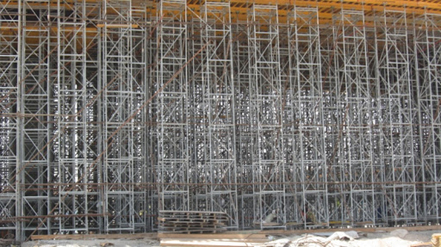

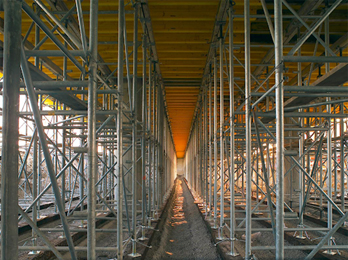

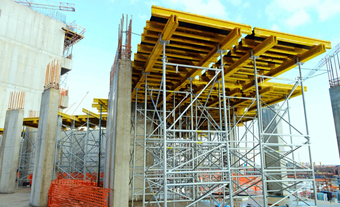

Heavy Frames are used under slabs and beams. It may use in Three different applications, Table type slab or loading towers or ladder towers. Base Jack and U-Head & Foot Head spindles are used to balance frames height to suit different slab heights. The system can design according to different concrete projects.

Width of Main frames is 1500mm, heights are 900mm, 1200mm and 1800mm. Heavy main frames are produced 50mm dia& 3mm thick pipes. Diagonal braces are produced 32mm dia& 2mm thick pipes.Leg Load for Main Frame can carry Safe working load 50kN/m².
